A single microscopic particle can ruin an entire pharmaceutical batch. It can short-circuit a highly sensitive microchip. Standard commercial walls trap dust and shed harmful fibers constantly. This makes them a massive liability for any controlled environment. In this detailed breakdown, we explore exactly how specialized facility architecture controls contamination. You will see how these systems maintain strict pressure cascades and ultimately protect your critical production yields.
Facility engineers must first recognize the fundamental flaws of traditional construction. Picture a typical commercial office wall. To the naked eye, drywall and standard acrylic paint appear perfectly flat. Under a microscope, these materials act like rigid sponges.
Standard building materials fail primarily due to high surface porosity. They possess thousands of tiny pores that actively trap dust, microbes, and ambient moisture. When humidity levels fluctuate in a facility, these porous surfaces quickly become breeding grounds for bacterial and fungal growth. Consequently, biological contaminants are continuously introduced into the airstream.
As paint ages and drywall experiences minor structural shifts from building vibrations, they degrade. This degradation actively releases micro-particles and volatile organic compounds into the surrounding space.
Traditional construction also relies on overlapping joints, baseboards, and crevices. These seams are never hermetically sealed. Airborne particles settle in these microscopic dead zones. They accumulate over time and eventually re-enter the room when doors open or HVAC systems cycle. Cleanroom architecture is specifically engineered to eliminate these exact vulnerabilities through advanced material science and flush structural design.
The primary function of a cleanroom is keeping airborne particulate counts below strict ISO classification thresholds. To achieve this, the physical envelope must actively prevent particle generation. Modern panel systems accomplish this through specific engineering mechanisms.
The outermost layer of a modern panel utilizes galvanized steel, stainless steel, or aluminum. Manufacturers treat these metal skins with specialized finishes like powder coating or PVC lamination. This creates an absolutely smooth, non-porous barrier. The surface is entirely inorganic and solid. Therefore, the wall itself never contributes to the airborne particulate count. There are simply no fibers to break off, no paint to chip, and no microscopic pores to harbor debris.
Airborne particles behave according to fluid dynamics. They inevitably settle wherever air velocity drops. Ledges, window sills, and deep wall seams are notorious collection points. To combat this, panels are manufactured to ensure seamless and flush integration. Windows, doors, and utility penetrations sit perfectly flat against the adjacent walls. Facility engineers remove the physical spaces where contaminants typically collect by eliminating horizontal ledges.
Static electricity is a severe, invisible threat in high-tech manufacturing. Static charges act like magnets. They attract ambient dust directly to wall surfaces. Once attached, these particles are stubbornly difficult to remove with standard airflow. High-quality surfaces frequently feature electrostatic discharge coatings. By safely dissipating static electricity, these walls actively repel dust. Particles remain suspended in the air where the filtration system can effectively capture them.
Controlling airborne particles is not just about the walls themselves. It is about how the physical envelope interacts with the air filtration system. Cleanrooms rely on High-Efficiency Particulate Air or Ultra-Low Penetration Air filters. These filters combine with precise laminar airflow to continuously push contaminants out of the workspace.

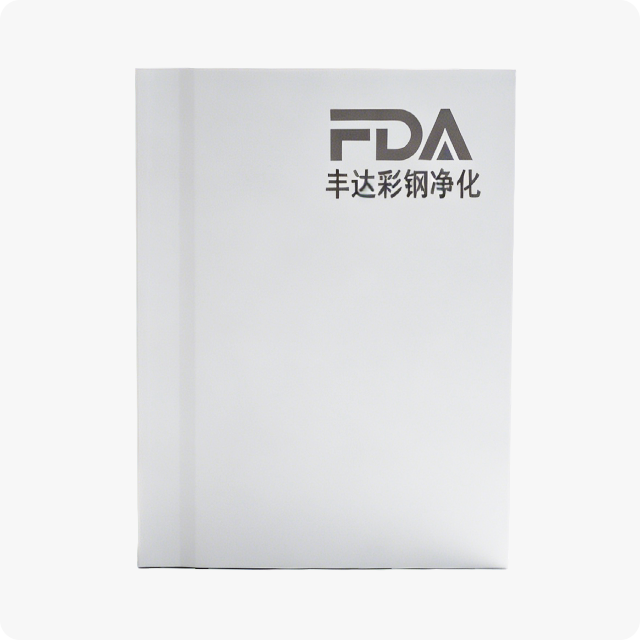

Proper integration of cleanroom wall panels plays a critical role in guiding this air. Unidirectional airflow requires air to move in straight, uninterrupted lines from the ceiling down to the low-level floor exhausts. Bumps, deep seams, or uneven textures cause the air to swirl. Aerodynamic turbulence traps airborne particles in localized vortexes. This keeps them suspended in the room instead of sweeping them away. Engineered wall systems feature perfectly flat surfaces to prevent this turbulence entirely.
Interlocking systems are also essential for airtight pressurization. Cleanrooms operate under positive air pressure. The pressure inside is higher than in the surrounding hallways. When a technician opens a door, this positive pressure forces clean air to rush out. This prevents dirty, unpurified air from infiltrating the space. Positive pressure escapes through structural leaks if the walls are not airtight. Precision-engineered joints maintain this critical pressure differential, acting as an invisible shield against external contamination.
While the surface prevents particle shedding, the core material dictates structural integrity, fire resistance, and moisture control. Selecting the correct core is a critical engineering decision. Facility managers must align the core material with their specific industry regulations and environmental risks.
Core Material | Primary Advantage | Best Application Scenarios | Contamination Control Feature |
|---|---|---|---|
Rock Wool | A1 Fire Resistance | Lithium Battery, Aerospace | Hermetically sealed to prevent fiber shedding |
Magnesium Sulfate | Moisture & Bio-Resistance | Pharmaceuticals, Biotech | Prevents fungal and bacterial proliferation |
EPS / PU | Thermal Insulation & Cost | ISO 7/8 Packaging, General Mfg | Solid core with flush metal facing |
Safety cannot be compromised for cleanliness in industries involving high temperatures, volatile chemicals, or strict municipal fire codes. Facilities utilize cores made from high-density spun basalt rock fibers for these high-risk scenarios.
Integrating a fibrous material into a clean environment might seem counterintuitive. However, specifying fire resistant rock wool panels provides a robust defense. The core is hermetically sealed within a rigid 0.4mm to 0.8mm steel or aluminum casing. High-strength polyurethane adhesives bond the metal to the rock wool, ensuring zero particle shedding into the room. With standard thicknesses ranging from 50mm to 100mm and an A1 fire rating, facility managers achieve exceptional thermal insulation and crucial fire safety without sacrificing ISO compliance. They are highly prevalent in lithium-ion battery manufacturing and aerospace assembly.
Pharmaceutical manufacturing, biotechnology, and medical device assembly face a unique contamination threat: biological particles. Controlling moisture is just as important as controlling dust in these environments. Moisture inevitably leads to bacterial and fungal proliferation.
Engineers specify premium custom-crafted cores utilizing magnesium sulfate to combat this specific threat. These halogen-free boards are incredibly strong and highly resistant to moisture absorption. The core fundamentally prevents mold growth because it does not absorb ambient humidity. This keeps biological airborne particles at absolute zero. The manual crafting process ensures tighter dimensional tolerances for precise installation. For advanced life science applications, handmade magnesium sulfate panels offer the ultimate combination of structural rigidity and biological contamination control.
Expanded Polystyrene or Polyurethane cores are often utilized for less stringent environments like ISO 7 or ISO 8 packaging rooms. These options provide excellent thermal insulation and remain highly cost-effective. They do not offer the extreme fire resistance of rock wool or the biological control of magnesium sulfate. Nevertheless, their sealed metal facings still deliver the non-shedding, non-porous surfaces required to manage airborne particles effectively.
Procuring high-quality materials is only the first step. Execution of the installation ultimately determines the facility's success. A poorly installed system will leak air, harbor particles, and fail ISO certification tests regardless of the material's initial quality.
Standard drywall is joined with tape and porous joint compound that degrades over time. Modern cleanroom architecture utilizes advanced mechanical connections instead. Most systems employ an aluminum profile framework or a specialized tongue-and-groove interlocking mechanism. Installers push two sections together to create a tight, highly aligned seam. This prevents air leakage and maintains structural rigidity under positive pressure.
Microscopic tolerances remain even with precision joining. The vital secondary step involves sealing every gap using cleanroom-grade, non-outgassing silicone. Standard construction silicone releases volatile organic compounds as it cures. This introduces chemical contamination known as airborne molecular contamination. Cleanroom-grade silicone remains flexible, resists chemical degradation, and physically blocks particles from migrating through the wall seams.
Walls meet floors and ceilings at sharp 90-degree angles in standard architecture. Fluid dynamics dictate that sharp corners create dead zones where air circulation stagnates. Cleanroom installations utilize aluminum coving to resolve this. Coving creates a smooth, concave radius at all structural transitions. This curved transition ensures the HVAC system can continuously sweep particles toward the exhaust returns. Contaminants are left with nowhere to hide.
A cleanroom is not a static environment. It requires rigorous daily intervention to maintain its certified status. The physical envelope is specifically designed to withstand the aggressive cleaning protocols necessary to sustain a particle-free space.
Rooms are frequently sterilized using harsh agents in pharmaceutical and biotech facilities. These include Vaporized Hydrogen Peroxide, bleach solutions, or isopropyl alcohol. Standard walls would quickly corrode, blister, or peel under this chemical assault. Specialized panel surfaces are coated with chemically inert finishes. They withstand repeated sterilization cycles without degrading, ensuring long-term structural integrity.
Daily wipe-downs are highly efficient because the surfaces are completely smooth. Cleaning personnel use validated lint-free mops and wipes. They physically remove any particles that have settled on the walls before they can become airborne again. A single pass with a cleaning tool is usually sufficient due to the lack of texture.
Imagine a technician rolling a heavy stainless-steel equipment cart down a busy corridor. A minor bump against a standard wall creates a dent or a scratch. A scratch is not just an aesthetic issue in a cleanroom. It is a microscopic canyon where particles and bacteria get trapped, safely shielded from cleaning wipes. High-density cores and thick steel facings resist these impacts. They maintain a perfectly smooth surface over the facility's lifespan.
The cleanroom construction sector is undergoing a massive shift driven by stricter manufacturing tolerances. Based on recent engineering developments, the industry is moving rapidly toward ultra-low outgassing materials and modular scalability. Facilities are abandoning traditional stick-built construction entirely.
With the rise of advanced semiconductor nodes, sub-nanometer manufacturing, and personalized medicine, the tolerance for airborne molecular contamination has practically reached zero. Modern facility design heavily favors prefabricated, modular wall systems that integrate smart sensors directly into the envelope. These sensors monitor pressure cascades, humidity levels, and particulate counts in real-time. This proactive, data-driven approach to facility architecture ensures long-term operational compliance rather than merely passing a baseline ISO standard test at launch. Sustainability is also becoming a key metric. Engineers are increasingly specifying recyclable metal facings and eco-friendly core materials to meet global green building standards while maintaining strict contamination control.
Selecting the appropriate system requires a methodical assessment of your facility's specific operational parameters. There is no universal solution. The right choice depends entirely on empirical data and your required cleanliness levels.
Stricter environments like ISO 4 or ISO 5 require systems with the tightest possible dimensional tolerances and superior anti-static properties to prevent micro-contamination. Less strict environments like ISO 8 may prioritize cost-effective insulation over extreme static control.
Different manufacturing sectors prioritize different protective measures. Electronics and semiconductor facilities must prioritize robust electrostatic discharge coatings to prevent static buildup. Pharmaceuticals and life sciences require aggressive chemical resistance and absolute moisture control to prevent biological growth. Heavy manufacturing and chemical processing must prioritize structural safety and A-level non-combustibility to meet municipal fire codes.
Facility managers should avoid off-the-shelf assumptions because cleanroom construction is highly regulated. Consulting with manufacturing experts during the design phase is crucial. A trusted manufacturer can customize thickness, core material density, and surface facings to match the exact aerodynamic and regulatory needs of the project.
Controlling airborne particles requires a holistic approach, but it fundamentally begins with a reliable physical envelope. Purpose-built wall systems provide this essential defense mechanism. They eliminate porous surfaces, shedding materials, and structural air leaks. Choosing the right materials prevents costly contamination events and ensures strict regulatory compliance. Ultimately, investing in proper facility architecture protects your product yield, ensures personnel safety, and secures the long-term operational success of your controlled environment. For tailored solutions that meet the highest industry standards, facility managers should explore the comprehensive range of specialized architectural products available at Jiangsufengda to secure their next critical project.
No, cleanroom panels do not filter the air. Air purification is handled exclusively by the HVAC system and HEPA or ULPA filters. The function of the panels is providing a smooth, non-shedding, and airtight physical envelope. This envelope prevents new particles from being generated by the walls and stops unpurified outside air from infiltrating. This allows the filters to perform their job effectively.
Machine-made panels are produced on a continuous automated line. This makes them highly cost-effective for standard, large-scale applications. Handmade panels are individually constructed with specialized internal frameworks. This manual process allows for higher precision, stronger structural integrity, and greater customization. Consequently, handmade panels are the preferred choice for strict pharmaceutical or biotech environments that require complex integrations.
Yes. Modular cleanroom wall systems are specifically designed for assembly within existing architectural structures. They function as a room within a room. This modularity allows facility managers to efficiently upgrade standard warehouses or manufacturing floors into fully compliant, ISO-certified cleanrooms without requiring ground-up construction.
While rock wool itself is a fibrous material, it does not negatively impact cleanroom cleanliness. The core is completely and hermetically sealed within a thick steel or aluminum facing using industrial adhesives. As long as the panel remains undamaged, it will never release fibers into the controlled environment. This provides excellent particle control alongside superior fire protection.
When properly installed and maintained, high-quality cleanroom panels can last 15 to 25 years. Their lifespan depends heavily on the core material, the thickness of the metal facing, and the harshness of the daily chemical sterilization protocols used in the facility.
For ISO 5 pharmaceutical environments, handmade magnesium sulfate boards are generally considered the best option. They provide absolute moisture resistance, which prevents biological contamination, and their handmade construction ensures the extremely tight dimensional tolerances required for high-level pressurization and frequent chemical washdowns.
