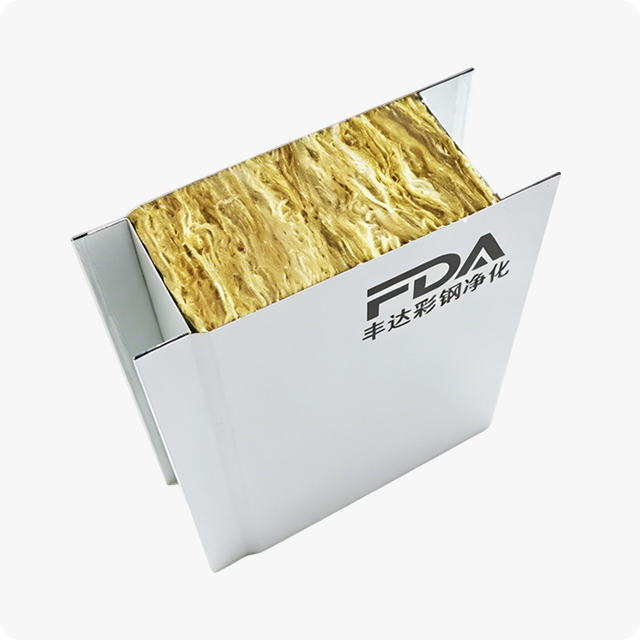

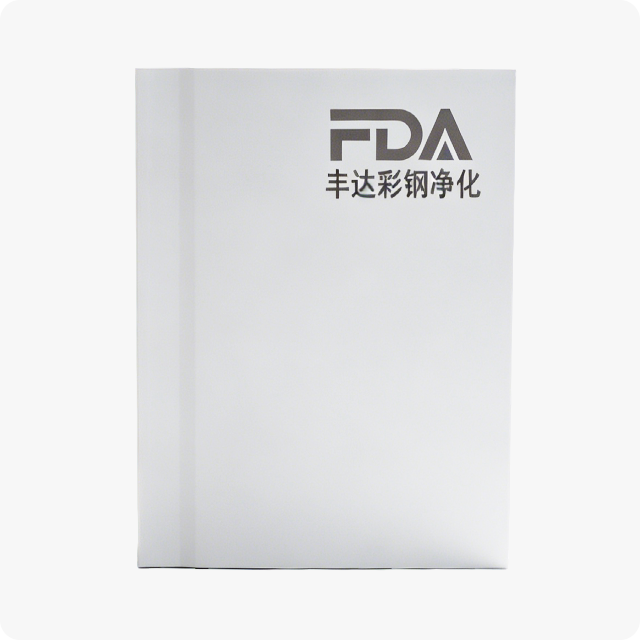

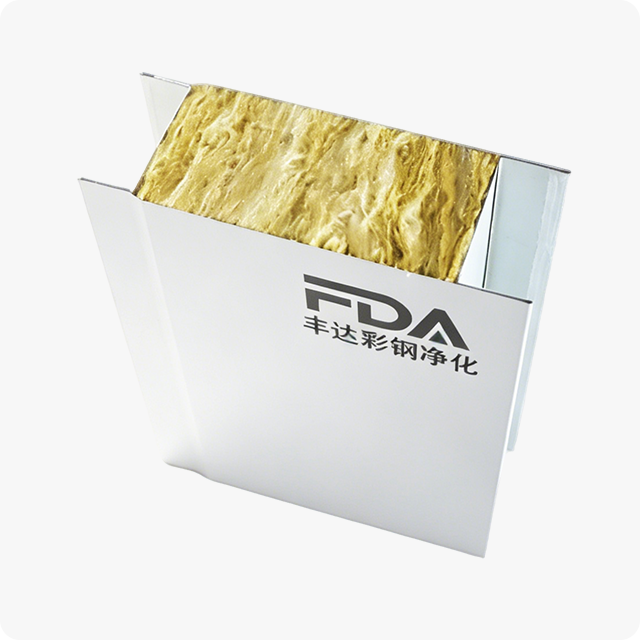

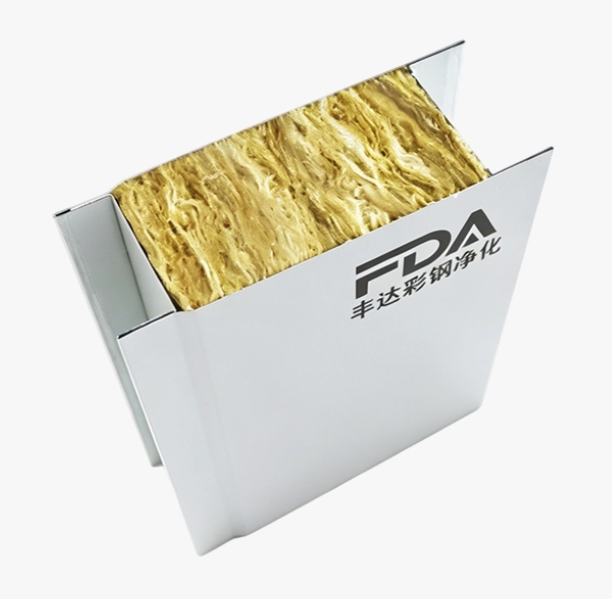

This fire resistant rock wool panel features rock wool fibers oriented perpendicular to the metal face sheets, with high-density strip rock wool staggered along the panel length. This structural configuration enhances the panel's load-bearing capacity. The core material consists of rock wool with density ranging from 60 to 140kg/m³, providing consistent structural support across panel dimensions.
Parameter | Specification |
Width | 950/1150mm |
Thickness | 50mm/75mm/100mm |
Density | 60-140kg/m³ |
Length | Customized production according to user needs and engineering requirements |
Core material | Rock wool |
Fire prevention | 1h |
Sound insulation | ISO 717/82 × UNI 18270/7 |
Connection method | Enterprise mouth splicing |
Manufactured with Class A fireproof rock wool core material, this panel achieves a 1-hour fire resistance rating. The rock wool core maintains structural integrity during fire exposure, supporting fire safety requirements in commercial facilities. This fire performance supports compliance with building codes for facilities requiring elevated fire protection standards.
The rock wool sandwich construction demonstrates measurable noise transmission reduction, particularly suitable for environments requiring sound isolation. Tested according to ISO 717/82 and UNI 18270/7 standards, the panels provide acoustic separation between controlled environments. The rock wool core also delivers thermal insulation performance for temperature-regulated spaces.
These panels serve as interior and exterior wall solutions for purification facility construction, as well as interior partitions requiring elevated fire protection and thermal insulation standards. Primary applications include interior environments in pharmaceutical manufacturing, electronics production facilities, biological research laboratories, food processing plants, and beverage production facilities.
Panels utilize enterprise mouth splicing for installation, creating continuous wall surfaces with consistent panel alignment. This connection method supports efficient installation workflows for large-scale cleanroom construction projects. Custom length production accommodates specific project dimensions and layout requirements.
Fengda operates four production bases across China with 15,000 square meters of modern factory space in the Jiangsu facility alone. Eight fully automated production lines enable daily output capacity exceeding 20,000 square meters. This manufacturing scale supports consistent volume supply for long-term engineering cooperation and large-scale construction projects.
The company provides integrated design, production, and construction services for cleanroom projects including Class 1000 and higher cleanliness level facilities. This end-to-end capability supports commercial procurement teams seeking single-source solutions for purification facility construction. Production bases strategically located in Jiangsu, Hubei, Guangdong, and Xinjiang enable regional supply efficiency across China.
Panels are manufactured in three standard thicknesses: 50mm, 75mm, and 100mm, to accommodate different fire resistance, insulation, and structural requirements for specific project applications.
Yes, panel length production is fully customized according to user specifications and individual engineering project requirements, supporting precise dimension matching for facility layouts.
The rock wool core material provides a 1-hour fire resistance rating, suitable for facilities requiring Class A fire protection performance in building partitions and cleanroom wall construction.
Primary industries include pharmaceutical manufacturing, electronics production, biological research facilities, food processing plants, and beverage production facilities requiring controlled environments with fire protection.
Panels feature enterprise mouth splicing, creating continuous wall surfaces with consistent alignment and supporting efficient installation for large-scale construction projects.
