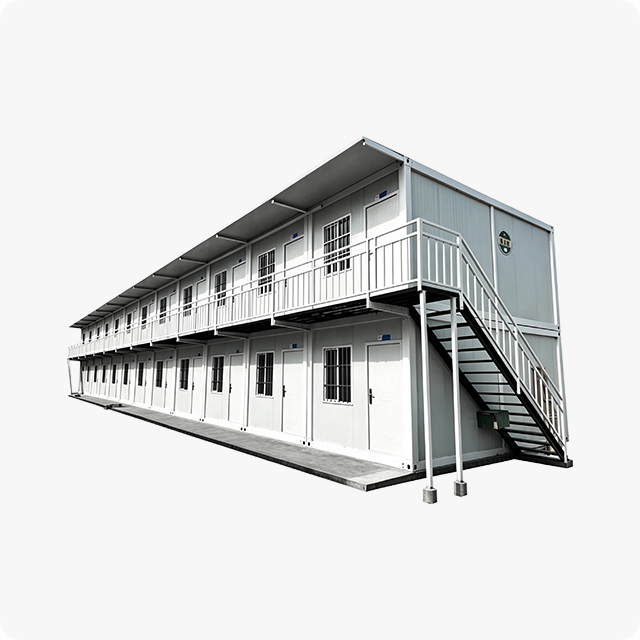

The modular second floor container represents a fully prefabricated building solution engineered for commercial office space requirements. Each unit undergoes complete fabrication within controlled factory environments. Primary structural frames utilize galvanized steel profiles, providing corrosion resistance and structural stability for multi-story configurations.
Wall panels integrate rock wool core materials with color steel surface layers, measuring 50mm to 150mm in thickness based on project specifications. The standardized connection system enables horizontal and vertical module combination, allowing second floor configurations without additional foundation reinforcement. All components maintain dimensional tolerance within ±2mm for precise assembly.
Parameter | Specification |
Standard Width | 950mm / 1150mm |
Panel Thickness | 50mm / 75mm / 100mm / 150mm |
Length | Customized according to project requirements |
Surface Material | PE polyester coated steel |
Steel Panel Thickness | 0.426mm / 0.476mm / 0.5mm |
Core Material | Rock wool |
Galvanized Frame | 0.7mm standard, ≥1.0mm available upon request |
Connection System | Male and female socket joint |
Module dimensions follow standard shipping container proportions for transport compatibility, while supporting dimensional customization. Typical single unit measures 6m × 3m × 2.8m, with unlimited horizontal extension and up to three stories vertically.

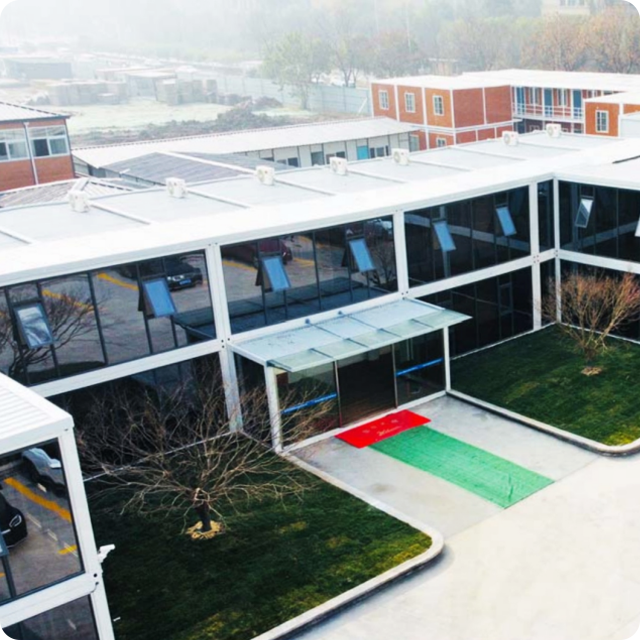

This building system serves diverse commercial procurement scenarios across multiple industries. Construction enterprises deploy these units as on-site project offices, providing immediate workspace availability within days of delivery. Manufacturing facilities utilize second floor containers for administrative offices, expanding existing facilities without production interruption. Industrial parks and logistics centers implement modular containers as branch offices and staff amenities.
The rapid assembly characteristic enables business operations to commence within 72 hours of module delivery, compared to 45-90 days required for traditional construction. All units support electrical wiring, network cabling, and HVAC system integration during factory production.
Production occurs across four manufacturing facilities covering Jiangsu, Hubei, Guangdong, and Xinjiang regions. The Jiangsu base operates 15,000 square meters of workshop space with 8 automated production lines, achieving daily output capacity exceeding 20,000 square meters. All production processes follow standardized quality control protocols.
Installation requires only basic ground preparation and 3-5 skilled workers for assembly. Module connection utilizes standardized locking mechanisms, ensuring structural integrity while enabling future disassembly and relocation.
The complete second floor system, including staircase and corridor connections, achieves full functionality within 3-5 working days. Standard two-unit second floor configurations complete installation including staircase assembly and utility connections within this timeframe.
Standard two-unit second floor configurations complete installation within 3-5 working days, including staircase assembly and utility connections. Larger multi-unit layouts require additional time proportional to project scale.
Yes, length dimensions adjust to specific project requirements while maintaining standard width and height specifications. Custom panel thickness, material selections, and interior layouts are available for commercial procurement orders.
Standard floor loading capacity reaches 200kg per square meter, with enhanced options available for heavy equipment requirements. Wind resistance complies with local building codes for regions up to level 12 wind force.
With proper maintenance, galvanized steel frames provide 15-20 years of service life. The modular design also supports relocation and reconfiguration, adapting to changing business space requirements.
Rock wool insulation panels provide thermal performance suitable for temperature ranges from -30°C to 50°C. Optional enhanced insulation packages accommodate extreme climate conditions for industrial applications in various regions.
