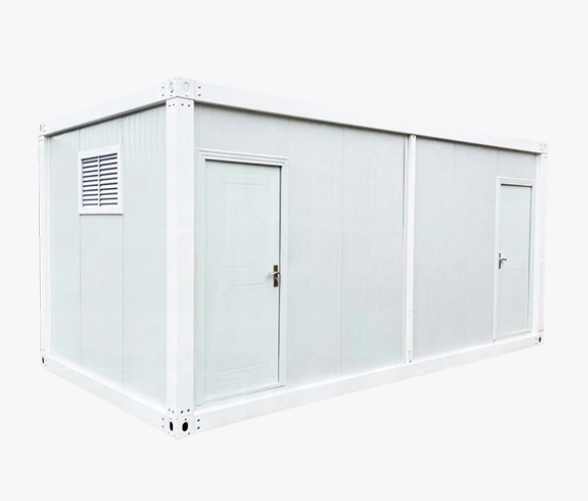

Our prefabricated modular container houses provide standardized temporary accommodation solutions for construction site operations. With 18 years of experience in modular building manufacturing, we have delivered over 5,000 container units to industrial clients across 30+ countries. Each unit incorporates structural steel framing with a 50-year design life, and production complies with ISO 9001 quality management standards. Factory pre-assembly reduces on-site construction time by 80%, enabling project managers to meet scheduled deadlines for worker camp establishment.
Each container house unit adopts a galvanized steel frame structure with wall panels composed of color-coated steel sheets and rock wool insulation core material. The standard wall thickness measures 50mm, 75mm, or 100mm, with panel thickness ranging from 0.426mm to 0.8mm. Rock wool core material maintains a density of 80K to 120K/m³, providing thermal insulation performance of 0.84W/m²·K. All units feature 1.0mm galvanized corner pieces and ABS plastic corner connections for structural stability during transportation and installation.

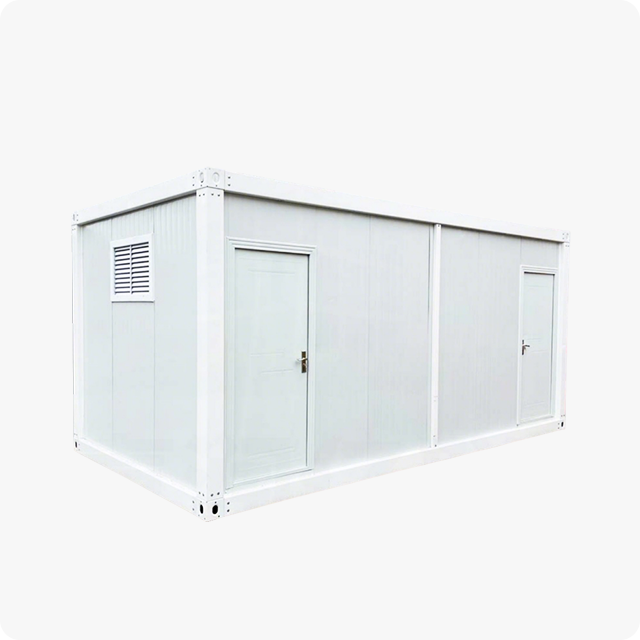

Modular container units arrive at construction sites as pre-fabricated modules requiring only on-site assembly. A standard 20ft container unit can be installed by 2-3 workers within 4 hours. Multi-unit camp configurations for 50-100 workers achieve full operational status within 3-5 working days. The modular connection system supports both mid-mounted aluminum and male-female socket connection methods, ensuring watertight sealing between adjacent units. Units can be disassembled and reassembled at new project locations, supporting up to 6 relocation cycles without structural degradation.
Parameter | Standard Specifications |
Wall Thickness | 50mm, 75mm, 100mm |
Standard Module Width | 980mm, 1180mm, 1200mm |
Maximum Unit Length | ≤ 12500mm |
Panel Material Options | PE polyester, PVDF fluorocarbon, anti-static, stainless steel |
Panel Thickness | 0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 0.8mm |
Core Material Density | 80K-120K/m³ rock wool |
Diagonal Tolerance | ≤ 3mm |
Flexural Bearing Capacity | 0.89KN/m² |
Bonding Strength | 0.07MPa |
Peel Performance | 85%-96% |
Heat Transfer Coefficient | 0.84W/m²·K |
Fire Resistance Duration | 1.0h |
Connection Methods | Mid-mounted aluminum, male-female socket |

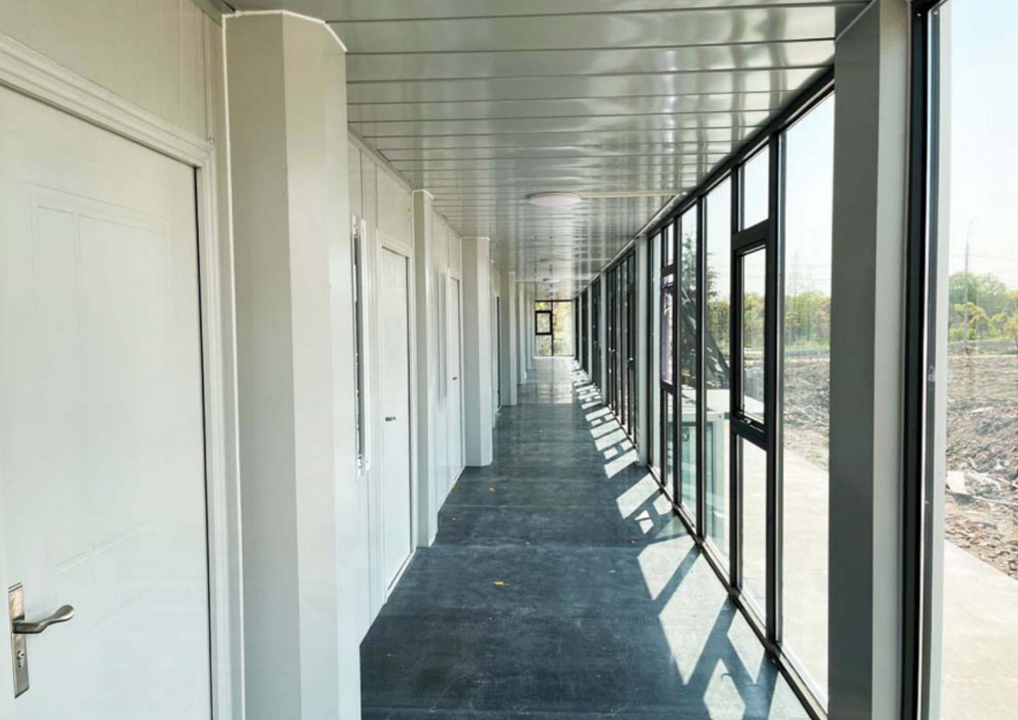

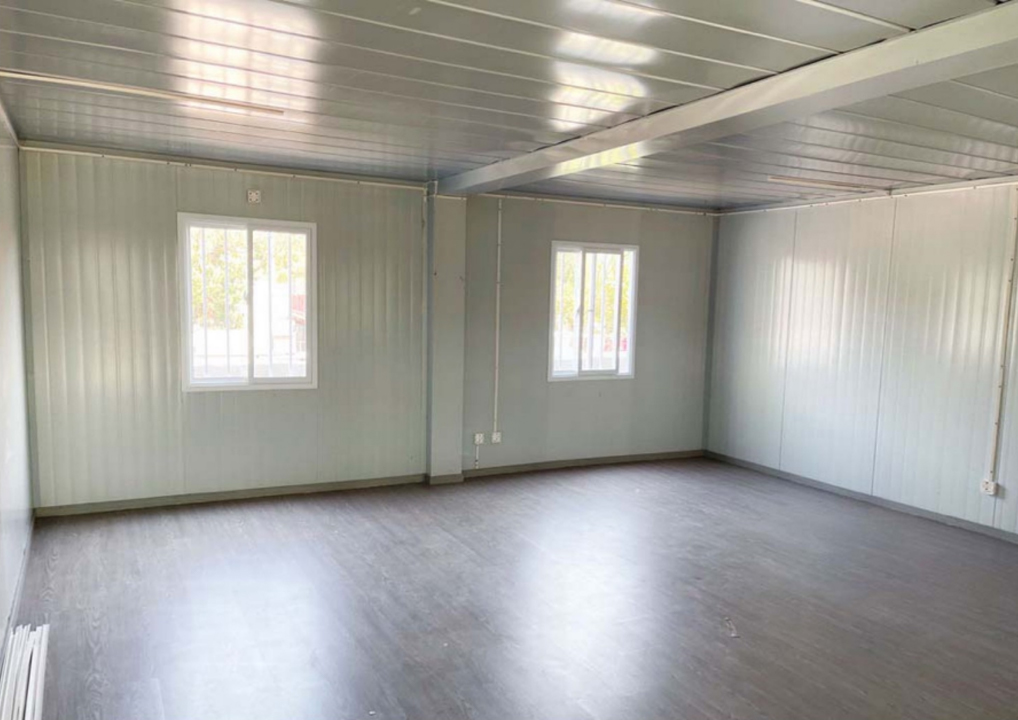

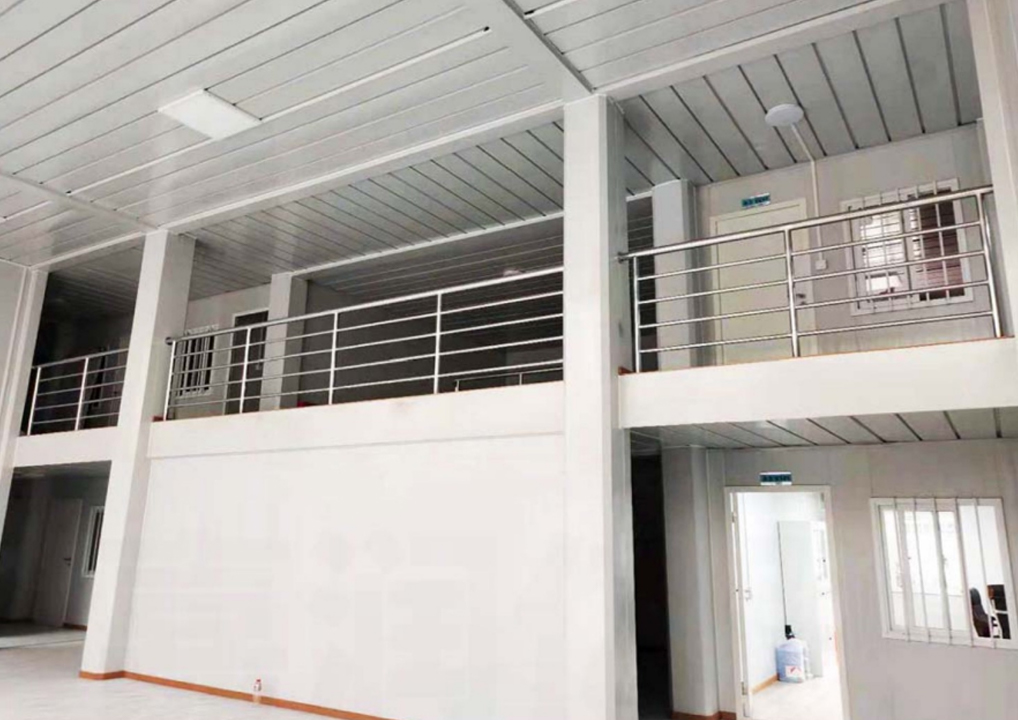

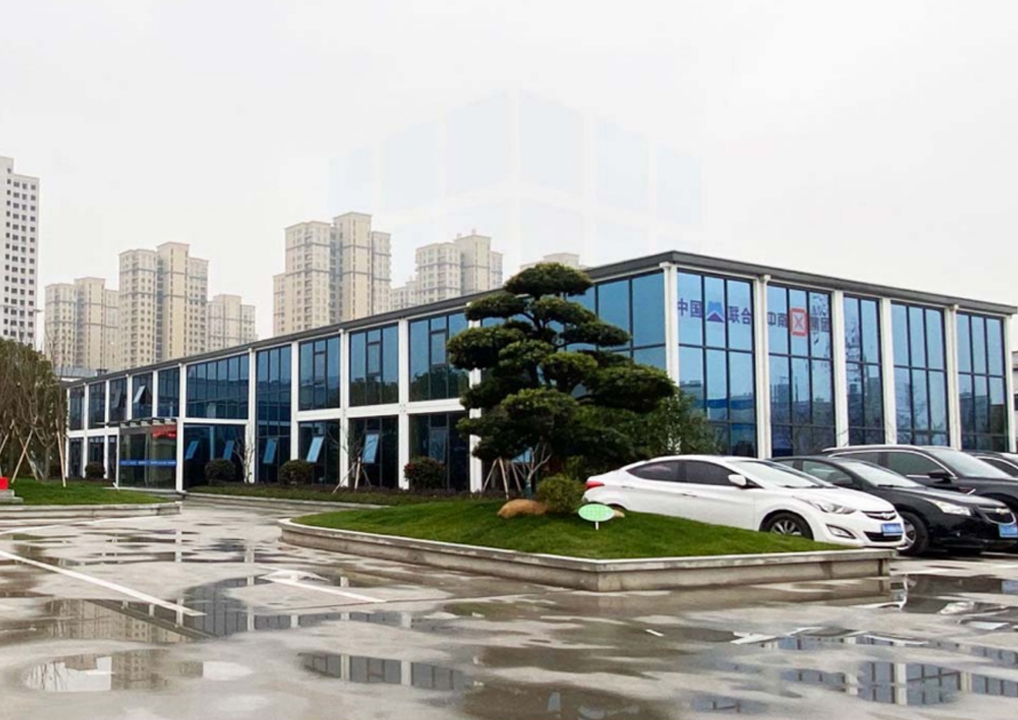

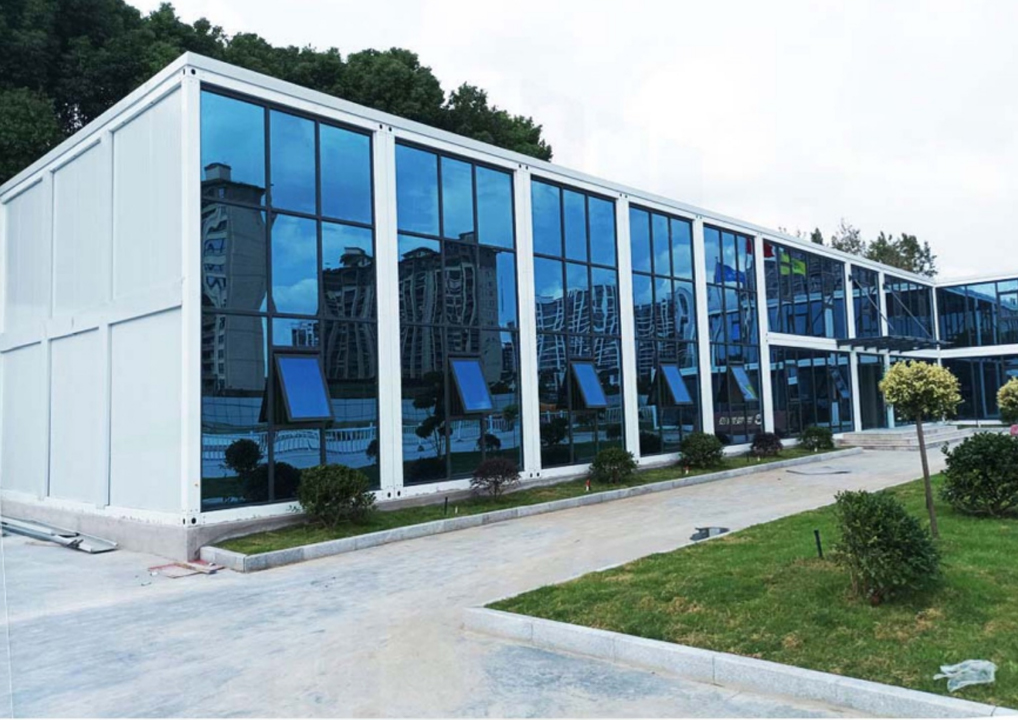

These modular container units serve multiple functions on construction sites, including worker dormitories, on-site offices, meeting rooms, dining facilities, and storage warehouses. The standardized design supports horizontal expansion for large-scale worker camps, with typical configurations ranging from 10-unit to 200-unit layouts. Rock wool insulation maintains interior temperature stability across climate conditions, while the fire-resistant core material meets construction site safety regulations. The wall panel system supports pre-installed electrical conduits and plumbing connections during factory production.
A single standard container unit requires 4-6 hours for complete installation by a 2-3 person installation team. A 50-unit worker camp can be fully installed and operational within 5 working days.
Yes, all units support disassembly and reassembly at new project locations. The modular connection system maintains structural integrity through up to 6 relocation cycles.
Interior customization includes partition wall positioning, window and door placement, electrical outlet configurations, and insulation thickness adjustments. Non-standard dimensions can be produced according to project-specific requirements.
