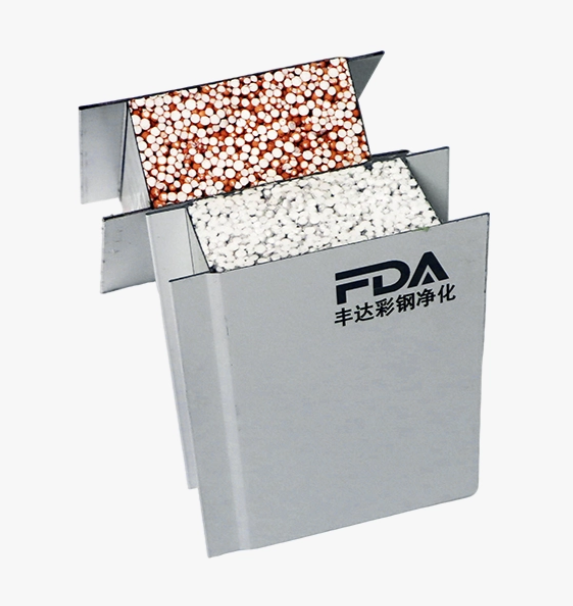

Lightweight EPS foam clean boards represent engineered building panels designed for modular construction and controlled environment facilities. Operating from a 45,000 square meter manufacturing facility with ISO 14001 environmental management certification, these panels incorporate expanded polystyrene core material, delivering a 40 percent weight reduction when compared with conventional building panels. Each panel achieves an R-25 insulation value, contributing to reduced HVAC operational expenditure for industrial warehouses, office buildings, and modular construction projects.

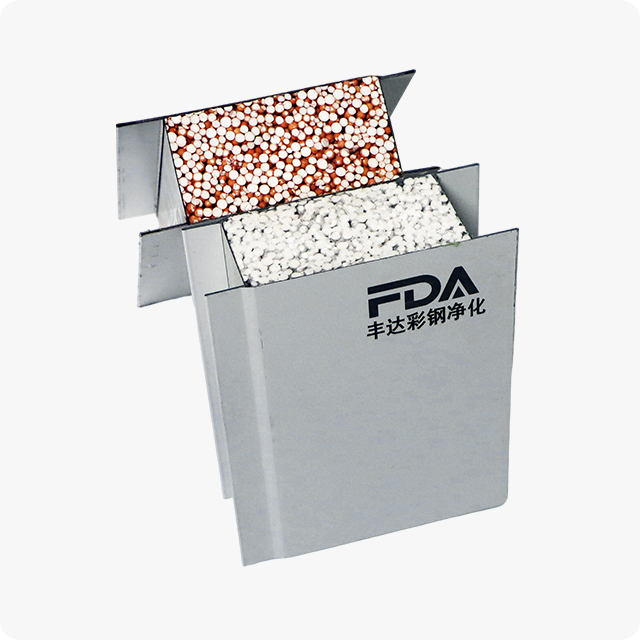

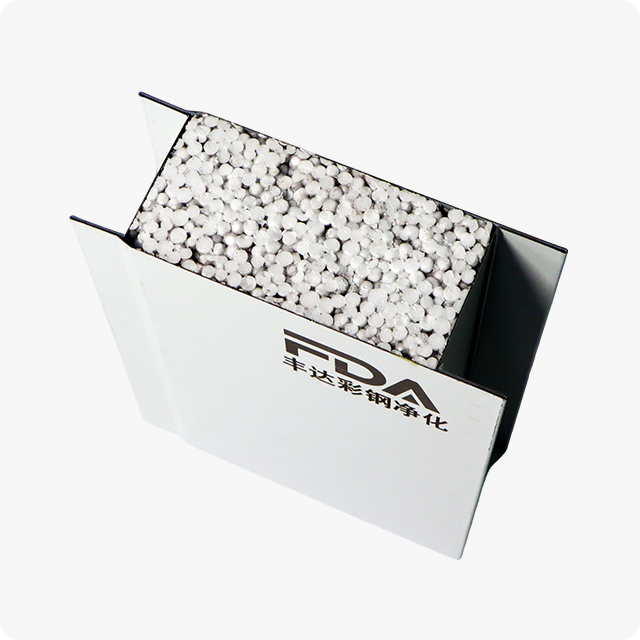

Expanded polystyrene forms the core insulation material of these clean boards. The foam structure creates consistent thermal resistance throughout the panel surface, with uniform density distribution maintained across production runs. The facing material provides a smooth surface suitable for cleanroom environments, supporting regular cleaning and sanitation protocols required in regulated industries.
Production follows standardized dimensional tolerances, with panel consistency verified at each manufacturing stage. The connection system utilizes tongue and groove splicing, enabling precise alignment during installation. Density customization options accommodate specific project requirements, with values ranging from 30 to 45 kilograms per cubic meter based on procurement specifications.
Parameter | Specification |
Width | 950/1150mm |
Thickness | 50mm-100mm |
Density | 30-45kg/m³ (on request) |
Length | Customized production according to user needs and engineering requirements |
Connection method | Tongue and groove splicing |
Weight | 10-14kg/㎡ |
Thermal conductivity | λ=0.0175 kcal/m·h·°C |
Modular construction projects benefit from the reduced weight of these panels, which lowers transportation requirements and simplifies on-site handling. The standardized connection system supports rapid assembly, reducing overall construction timelines. Panels work effectively for both exterior wall applications and interior division elements within modular building designs.
Facilities requiring controlled environments implement these boards for both wall and ceiling applications. The smooth surface finish supports cleaning protocols necessary for pharmaceutical production, electronics manufacturing, biological research facilities, and food and beverage processing plants. Both fire resistance and thermal insulation properties meet the elevated requirements of these specialized environments.
With λ=0.0175 kcal/m·h·°C thermal conductivity and R-25 insulation value, these panels contribute to consistent temperature control within enclosed spaces. This performance reduces heating and cooling system load, supporting energy consumption reduction for ongoing facility operations. The insulation properties remain consistent across the panel service life, maintaining performance characteristics under normal operating conditions.
The 10-14kg/㎡ weight range facilitates manual handling during installation, reducing the need for heavy lifting equipment on construction sites. The tongue and groove connection system ensures accurate panel alignment, minimizing installation time and reducing the requirement for on-site adjustments. These characteristics combine to reduce overall project installation costs.
Panel thickness ranges from 50mm to 100mm, allowing specification based on insulation requirements and structural considerations for each project.
These panels find application in pharmaceutical manufacturing facilities, electronics production plants, biological research laboratories, food and beverage processing facilities, and general modular building projects.
Length dimensions receive customization based on specific project requirements and engineering specifications. Standard width options include 950mm and 1150mm, with density values adjustable from 30 to 45kg/m³ according to procurement specifications.
Panels utilize tongue and groove splicing, which ensures accurate alignment during installation and creates consistent joints between adjacent panels.
