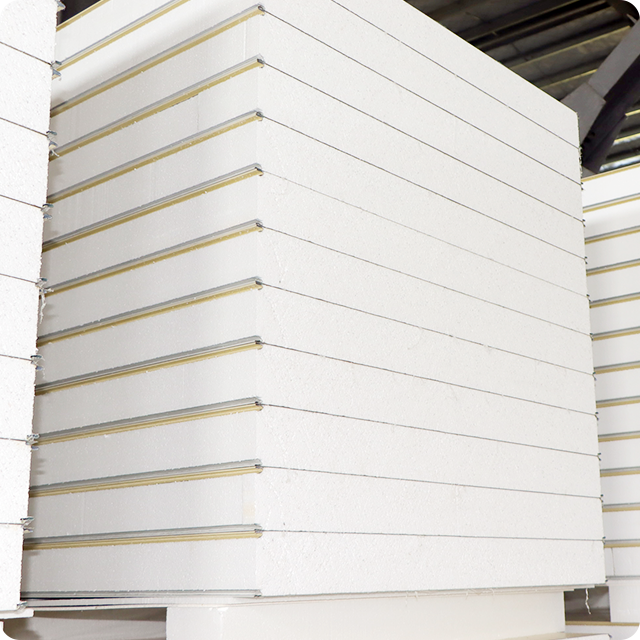

S-Profile EPS Insulation Board incorporates S-shaped bevel joint design for wall construction applications. This joint configuration minimizes air gaps between adjacent panels during installation. The boards undergo standardized foaming processes to maintain consistent material density and thermal properties across production batches. Facilities operate 8 fully automated production lines with daily output capacity exceeding 20,000 square meters, supporting large-volume orders for industrial construction projects.
Parameter | Specification |
Joint Type | S-shaped bevel |
Core Material | Expanded Polystyrene (EPS) |
Standard Width | 950mm / 1150mm |
Standard Thickness | 50mm / 75mm / 100mm / 150mm |
Panel Material | PE polyester coated steel |
Panel Thickness | 0.426mm / 0.476mm / 0.5mm |
Length | Customized according to project requirements |
Connection Method | Male and female socket connection |
S-Profile EPS Insulation Board installs on exterior building walls and roofing structures. The S-joint design facilitates alignment during installation, particularly for high-altitude operations. Panels maintain dimensional stability across temperature variations from -40°C to 70°C.
For cold storage construction, these boards provide thermal barrier properties. The interlocking S-profile reduces thermal bridging at panel junctions, supporting temperature-controlled environments for food processing, pharmaceutical storage, and logistics facilities.
These insulation boards serve prefabricated building projects, construction site facilities, and temporary industrial enclosures. Lightweight characteristics reduce structural load requirements while maintaining insulation performance. Batch production capabilities support rapid project timelines for commercial operations.

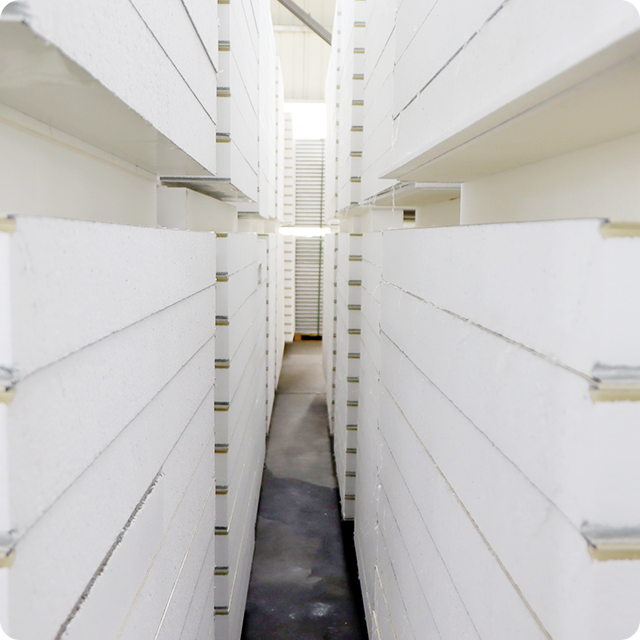

Production occurs across four regional manufacturing bases: Jiangsu, Hubei, Guangdong, and Xinjiang. Each facility maintains standardized production protocols to ensure material consistency across orders. The Jiangsu base alone operates 15,000 square meters of modern production space with direct access to national transportation networks. This distributed production structure enables localized delivery and reduces lead times for commercial procurement across different regions.
Panels connect via male-female socket system with S-bevel edges. This design accommodates both horizontal and vertical installation orientations. Standard fastening hardware works with these panels, and no specialized tools are required for assembly.
Yes, length dimensions are customizable based on project specifications. Standard width and thickness options remain available, and non-standard dimensions can be accommodated for volume orders.
Standard production lead time ranges from 7-15 working days depending on order volume. Distributed manufacturing bases allow priority production allocation for time-sensitive industrial applications. Local warehouse inventory supports immediate delivery requirements for smaller quantities.

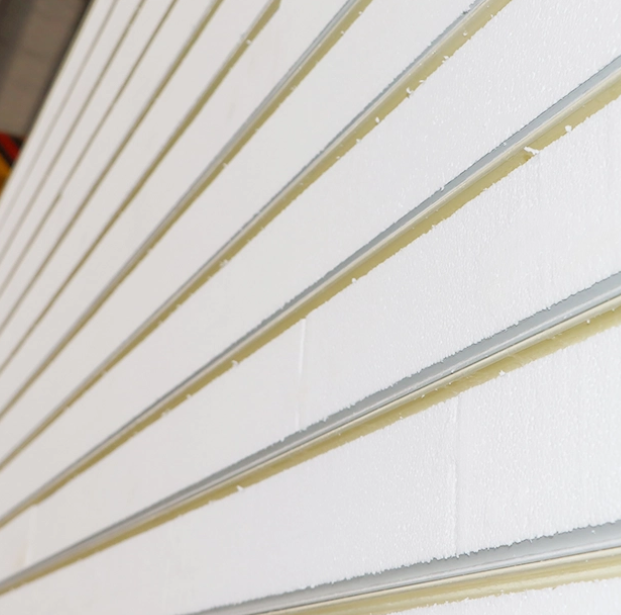

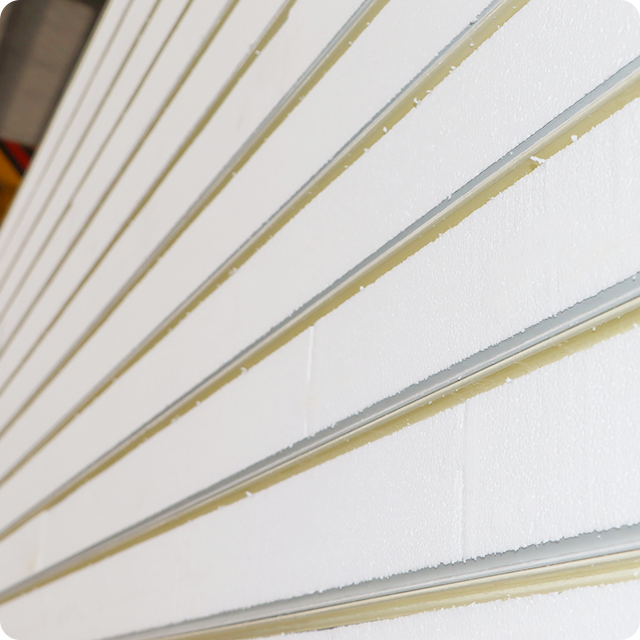

The S-shaped bevel creates an overlapping seal between adjacent panels, reducing air infiltration compared to straight-edge configurations. This design also improves visual alignment during installation and reduces the occurrence of surface misalignment between panels.
