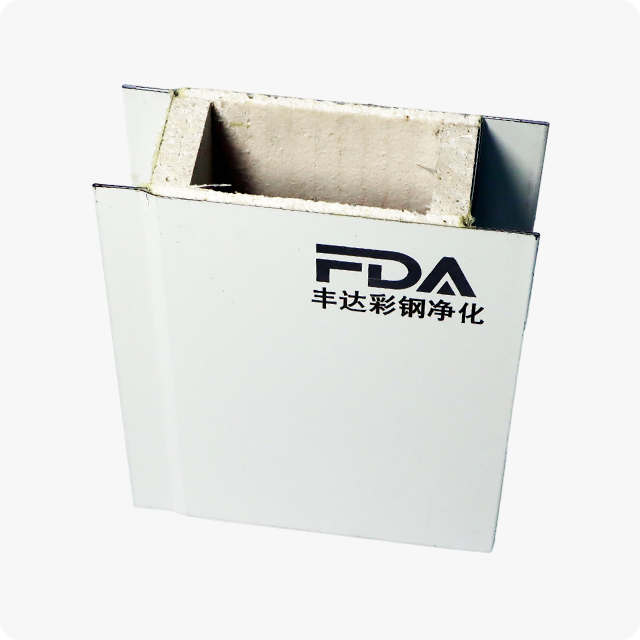

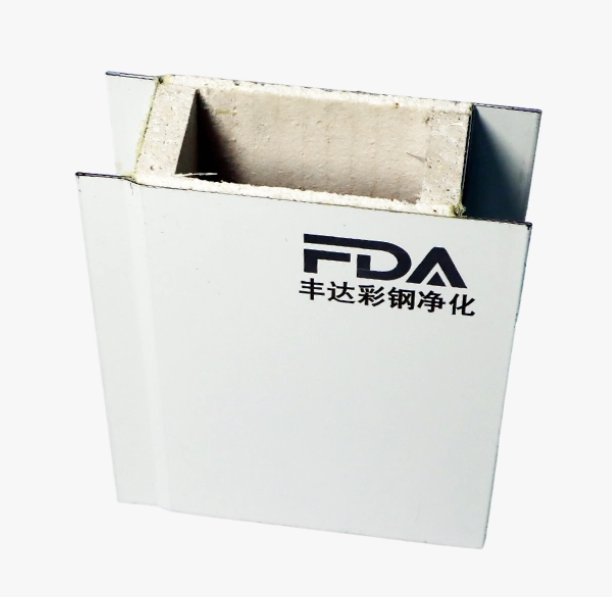

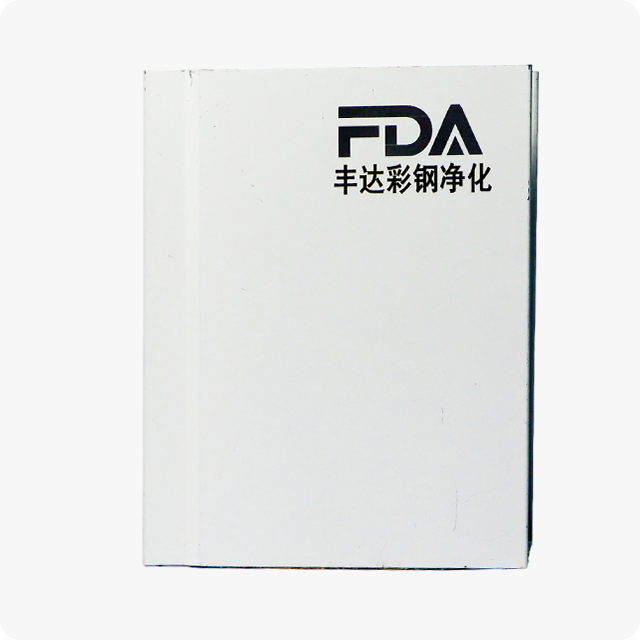

Hollow glass magnesium cleanroom panels utilize color coated steel or stainless steel as facing materials, reinforced with galvanized steel strips along all edges and galvanized corner seals. The panels incorporate ABS plastic corner connections, with glass magnesium strips and double-sided glass magnesium boards forming the internal core structure. Each panel undergoes controlled heating, pressure application, and curing processes during manufacturing. The production facilities operate across four regional bases covering Jiangsu, Hubei, Guangdong, and Xinjiang, with 8 fully automated production lines maintaining consistent manufacturing standards.
Panel surfaces are available in multiple material configurations: PE polyester coating, PVDF fluorocarbon coating, salt-resistant coated panels, anti-static surfaces, and stainless steel finishes. Each surface option addresses specific environmental requirements within controlled environments. Panel thickness options range from 0.426mm to 0.8mm, allowing specification matching to project requirements.
Parameter | Specification |
Wall thickness | 50mm、75mm、100mm |
Standard modulus | 980mm、1180mm、1200mm，Non standard customizable |
Diagonal error | ≤3mm |
Maximum length | ≤12500mm |
Panel material | PE polyester, PVDF (fluorocarbon), salt coated panel, anti-static, stainless steel |
Panel thickness | 0.426mm、0.45mm、0.476mm、0.5mm、0.6mm、0.8mm |
Filling core material | Glass magnesium strip (with a spacing of 100mm)+5mm glass magnesium panel |
Galvanized frame | 0.7mm，≥1.0mmCustomization is available for sizes above 0.7mm and ≥ 1.0mm |
Corner piece | 1.0mm galvanized corner piece, ABS plastic corner |
Resist film | 0.06mm thick, customizable for sizes greater than 0.06mm |
Connection method | Mid mounted aluminum connection, male and female socket connection |
Beyond standard dimensions, custom sizing accommodates project-specific architectural requirements. The galvanized frame supports thickness specifications starting at 0.7mm, with 1.0mm and thicker configurations available for structural reinforcement applications.
The panels deliver a flexural bearing capacity of 1.468KN/m², with adhesive strength measured at 0.063MPa. Peel performance between composite layers maintains consistency at 85%-95% across production batches. The heat transfer coefficient registers at 1.032W/m²·K, contributing to thermal stability within controlled environments.
Fire resistance rating reaches 1.0 hour, meeting regulatory requirements for pharmaceutical manufacturing spaces. The glass magnesium core material contributes to flame retardant properties while maintaining structural integrity under elevated temperature conditions. Production facilities implement diagonal tolerance control within 3mm, ensuring precise panel alignment during installation.
These panels serve as primary wall and ceiling systems for biopharmaceutical cleanrooms, pharmaceutical operating rooms, and controlled laboratory environments. The non-porous surface characteristics support regular sanitization protocols required in pharmaceutical manufacturing settings.
Beyond life sciences applications, the panels install in electronic industry cleanrooms, new energy production facilities, and food processing clean environments. The modular connection systems enable mid-mounted aluminum connections or male-female socket configurations, adapting to various installation scenarios.
Four production bases operate across China, with the Jiangsu facility maintaining 15,000 square meters of modern manufacturing space near G15 Shenhai Expressway. Combined daily production capacity exceeds 20,000 square meters, supported by technical teams providing design, production, and construction integration services.
Each production base implements standardized quality control protocols across all manufacturing stages, from raw material inspection through final panel curing. The shared factory operational model enables centralized quality management while maintaining regional delivery efficiency for commercial procurement operations.
Standard panels feature glass magnesium strips spaced at 100mm intervals combined with 5mm glass magnesium face panels. Core material specifications remain consistent across all standard panel widths: 980mm, 1180mm, and 1200mm. Custom core modifications require minimum order quantity evaluation.
Two primary connection methods accommodate different installation requirements: mid-mounted aluminum connections and male-female socket connections. Technical teams provide installation guidance based on specific project layouts and structural requirements. All connection systems maintain alignment tolerances consistent with the 3mm diagonal precision standard.
Maximum manufactured length reaches 12500mm, enabling continuous wall runs in large facility installations. Transport and installation logistics are evaluated for panels exceeding 8000mm in length, with technical recommendations provided based on project location and installation access.
