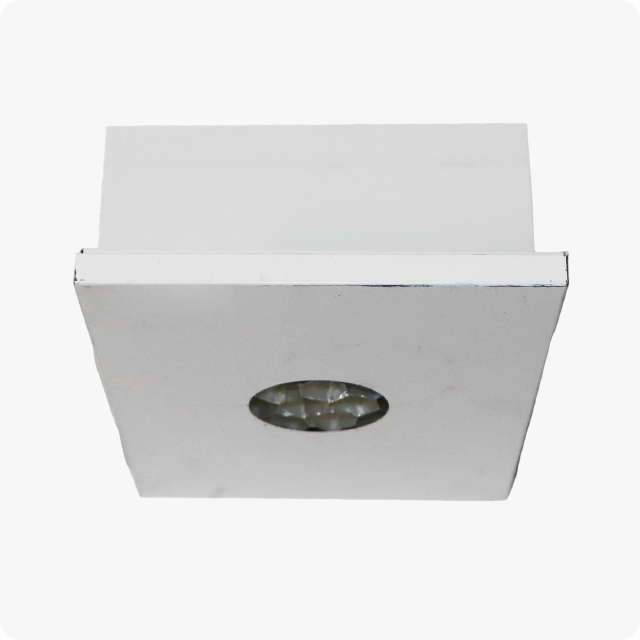

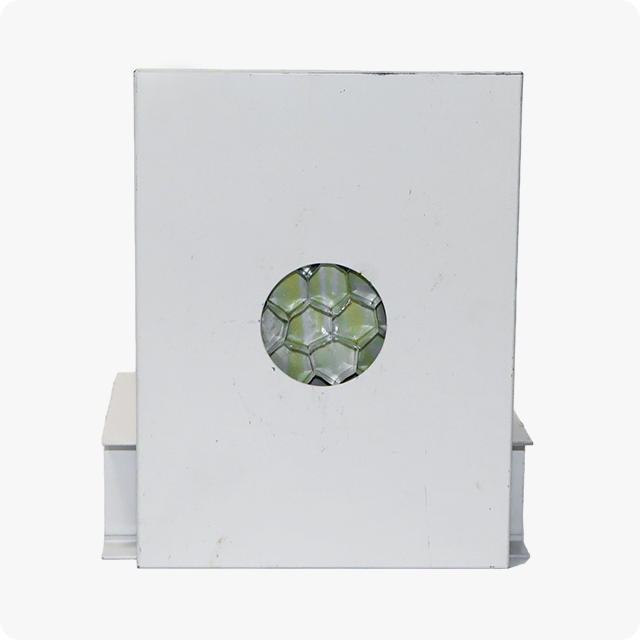

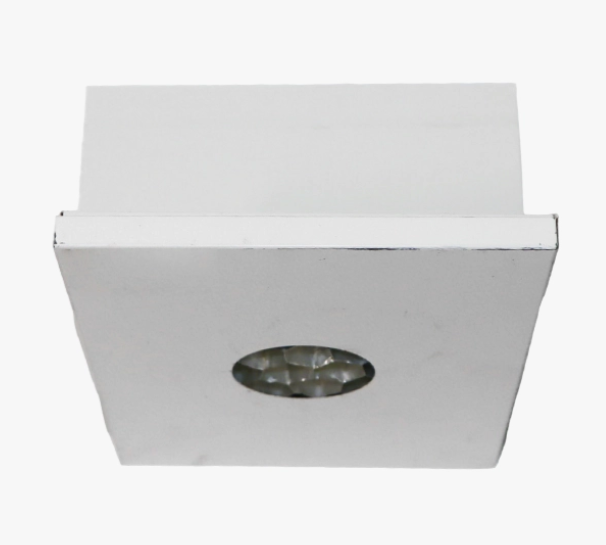

The GMP standard manual blind plate functions as a dedicated supporting component for complete cleanroom panel systems. Manufactured through precise manual processing, this product achieves consistent sealing performance with surrounding purification boards. It serves as the essential solution for closing partial wall areas in various purification projects. Our production facilities maintain sufficient inventory levels to support timely delivery for commercial procurement and enterprise projects.
The manual blind plate adopts color-coated steel or stainless steel as surface panels, with galvanized steel strips and galvanized corner fittings surrounding all edges. ABS plastic corners provide connection points between panels. The manufacturing process includes heating, pressurization, and curing stages to ensure structural integrity.
Engineered for cleanroom environments, the blind plate creates continuous wall surfaces by filling gaps between main purification panels. The manual fabrication process allows for precise dimensional matching with adjacent panels, maintaining the airtight integrity required for controlled environments.
Parameter | Specification |
Wall Thickness | 50mm, 75mm, 100mm |
Standard Module Width | 980mm, 1180mm, 1200mm (customizable for non-standard dimensions) |
Diagonal Tolerance | ≤3mm |
Maximum Length | ≤12500mm |
Panel Material Options | PE polyester, PVDF fluorocarbon, salt-coated panel, anti-static, stainless steel |
Panel Thickness | 0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 0.8mm |
Galvanized Frame | 0.6mm, 0.7mm, 0.8mm |
Corner Fittings | 1.0mm galvanized corner piece, ABS plastic corner |
Protective Film | 0.06mm thickness (customizable for thickness above 0.06mm) |
Flexural Bearing Capacity | 0.89KN/m² |
Bonding Strength | 0.07MPa |
Peel Performance | 85%-96% |
Heat Transfer Coefficient | 0.84W/m²×K |
Fire Resistance Duration | 1.0h |
Connection Method | Mid-mounted aluminum connection, male-female socket connection |
The GMP-compliant blind plate meets the stringent requirements of pharmaceutical manufacturing facilities, biotech laboratories, and vaccine production plants. It supports the controlled environment standards necessary for drug development and production processes.
For semiconductor fabrication, PCB assembly, and precision electronics production, the blind plate maintains the dust-free conditions required for component manufacturing. It integrates seamlessly with existing cleanroom wall systems.
Food processing plants, dairy facilities, and beverage production lines utilize these blind plates to maintain hygienic production environments that meet food safety regulatory standards.
Hospital operating rooms, sterile supply centers, and research laboratories deploy these blind plates to create sterile, easily cleanable wall surfaces that support infection control protocols.
The manual blind plate installs using mid-mounted aluminum connections or male-female socket connections. Ensure proper alignment with adjacent purification panels before securing. The ABS plastic corner pieces facilitate accurate positioning during installation.
Regular visual inspection of seal integrity is recommended. The smooth panel surfaces allow for standard cleanroom cleaning procedures. Protective film should remain in place during construction and removed only after project completion.
Non-standard dimensions are customizable beyond the standard module widths. Maximum production length reaches 12500mm to accommodate specific project requirements.
Stainless steel and anti-static panels are commonly specified for GMP-grade cleanrooms, while PE polyester and PVDF fluorocarbon options serve general industrial applications.
Standard dimension orders ship within 7-10 working days from production facilities. Custom specifications require additional 3-5 working days for manufacturing.
The blind plate design provides compatibility with standard handmade cleanroom panel systems using matching connection methods and thickness specifications.
Our four production bases across China operate 8 automated production lines with daily output capacity exceeding 20,000 square meters. This scale supports consistent supply for enterprise projects across multiple regions. Each production facility maintains dedicated quality control processes to ensure specification adherence across all orders. Technical support teams provide installation guidance and post-delivery assistance for commercial procurement projects. Contact our engineering team for project-specific quotations and technical documentation.
