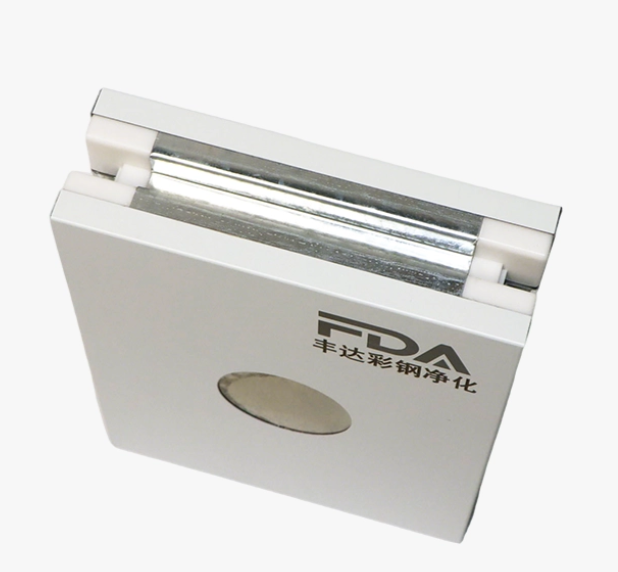

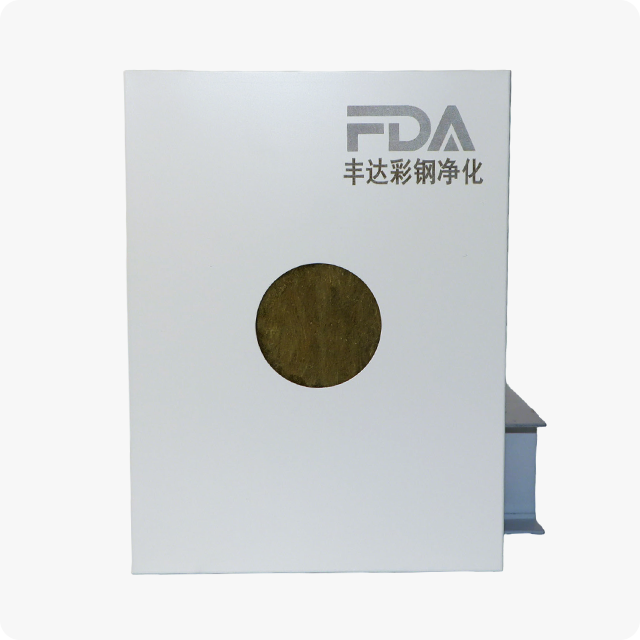

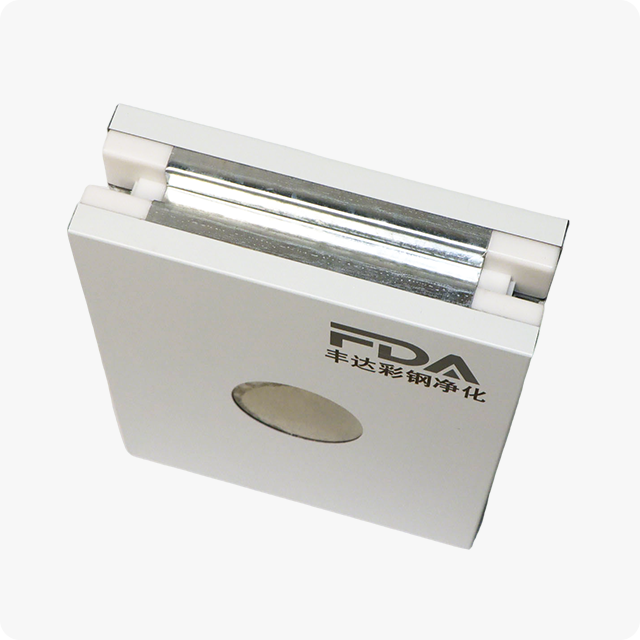

Rock wool purification panels for hospital facilities utilize color-coated or stainless steel face plates, reinforced with galvanized steel strip frames and galvanized corner seals. The panels incorporate ABS plastic corner connections and feature rock wool as the internal core material. Manufactured through heating, pressurization, and curing processes, each panel undergoes standardized bending and adhesion tests before leaving the production facility. The manufacturing facilities operate across four regional production bases with a combined 15,000 square meters of modern factory space, equipped with 8 fully automated production lines supporting daily output capacity exceeding 20,000 square meters.
Parameter | Specification |
Wall thickness | 50mm, 75mm, 100mm |
Standard modulus | 980mm, 1180mm, 1200mm, Non-standard customizable |
Diagonal error | ≤3mm |
Maximum length | ≤12500mm |
Panel material | PE polyester, PVDF (fluorocarbon), salt coated panel, anti-static, stainless steel |
Panel thickness | 0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 0.8mm |
Filling core material | Rock wool (bulk density 80K-120K/m³) |
Galvanized frame | 0.6mm, 0.7mm, 0.8mm |
Corner piece | 1.0mm galvanized corner piece, ABS plastic corner |
Resist film | 0.06mm thick, customizable for sizes greater than 0.06mm |
Flexural bearing capacity | 0.89KN/m² |
Adhesive strength | 0.07MPa |
Peel performance | ≥85%-≤96% |
Heat transfer coefficient | 0.84W/m²·K |
Fire resistance limit | 1.0h |
Connection method | Mid mounted aluminum connection, male and female socket connection |
The panels deliver a measured heat transfer coefficient of 0.84W/m²·K, providing consistent thermal insulation performance for hospital environments. This level of thermal efficiency supports temperature stability in operating rooms, patient wards, and pharmaceutical storage areas. The rock wool core material contributes to acoustic dampening properties, reducing noise transmission between medical departments and supporting patient recovery environments.
With a 1.0-hour fire resistance rating, these panels meet the fire safety requirements for healthcare facility construction. The non-combustible rock wool core material combined with galvanized steel framing provides structural integrity during fire events, supporting safe evacuation protocols and protecting critical hospital infrastructure. Flexural bearing capacity reaches 0.89KN/m² with 0.07MPa adhesive strength, ensuring panel stability under various loading conditions throughout the facility lifecycle.
Hospital facility panels feature precision-manufactured connection systems including mid-mounted aluminum connections and male-female socket designs. These connection systems create tight seals between panels, preventing particle infiltration and supporting cleanroom classification requirements. Diagonal error is controlled within ≤3mm across all panel dimensions, ensuring uniform installation and consistent gap dimensions between adjacent panels. Galvanized frame thickness ranges from 0.6mm to 0.8mm, providing structural rigidity while maintaining hygienic surface properties.
Panel surface options include PE polyester, PVDF fluorocarbon coatings, anti-static treatments, and stainless steel finishes, each selected for compatibility with hospital disinfection protocols and cleaning procedures. Anti-static surface options support static control in sensitive laboratory and surgical environments. Stainless steel face plates provide enhanced chemical resistance for areas requiring frequent disinfection. The smooth, non-porous surface finishes prevent bacterial harboring and support regular cleaning regimens required for clinical environments.
Production facilities implement comprehensive quality control processes including standardized bending tests, adhesion strength verification, and dimensional accuracy checks. Technical teams support commercial procurement projects from initial design through installation guidance, providing integrated design-production-construction solutions. Panel customization accommodates specific hospital department requirements, with adjustable panel materials, dimensions, and core material densities to match project specifications.
The manufacturing network serves biopharmaceutical cleanrooms, electronic manufacturing facilities, food production environments, hospital operating rooms, and laboratory installations across multiple industrial applications. Bulk order production supports large-scale hospital construction and renovation projects, with production scheduling aligned to construction timelines for commercial procurement clients.
Standard thickness options include 50mm, 75mm, and 100mm. Selection depends on specific thermal insulation requirements, fire rating needs, and acoustic performance targets for individual hospital departments including operating suites, isolation wards, and pharmacy compounding areas.
Yes, non-standard dimensions are customizable beyond the standard 980mm, 1180mm, and 1200mm modulus options. Maximum panel length reaches 12500mm to accommodate continuous wall runs and minimize joint requirements in large hospital spaces. Panel materials can be specified by department, with anti-static or stainless steel options for specialized clinical areas.
Production scheduling depends on order volume and customization requirements. With 8 automated production lines and 20,000 square meters daily capacity, standard commercial orders proceed through manufacturing within scheduled timelines. Technical teams provide detailed production schedules during commercial procurement quotation processes, aligned with project construction milestones.
