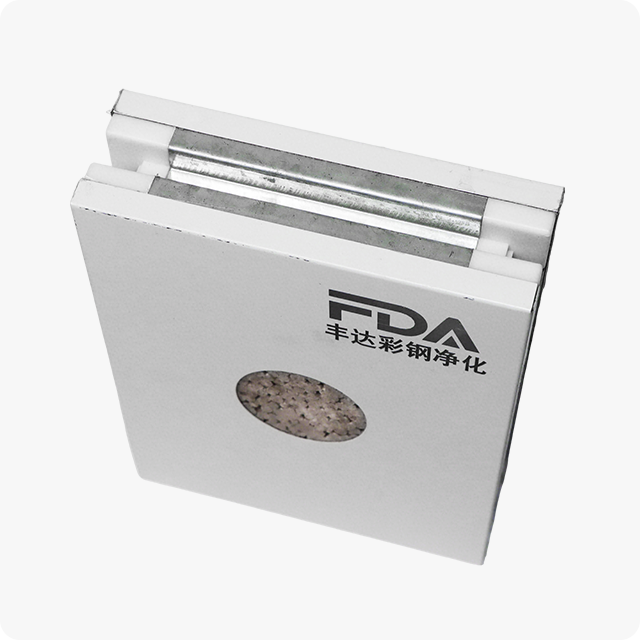

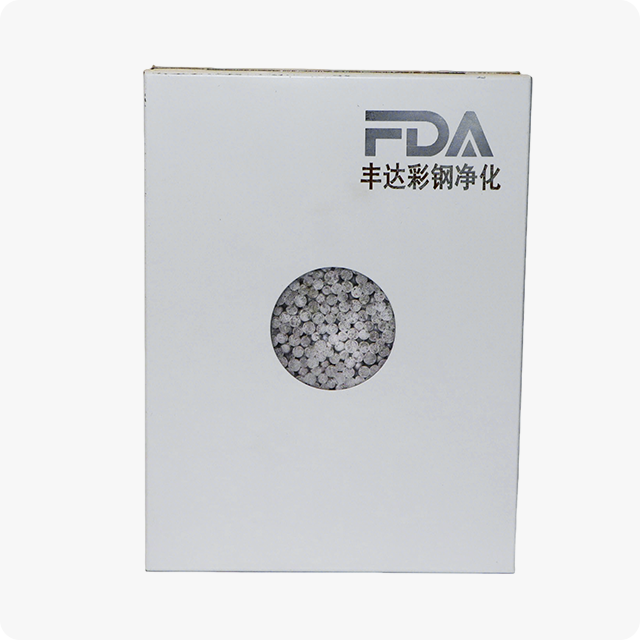

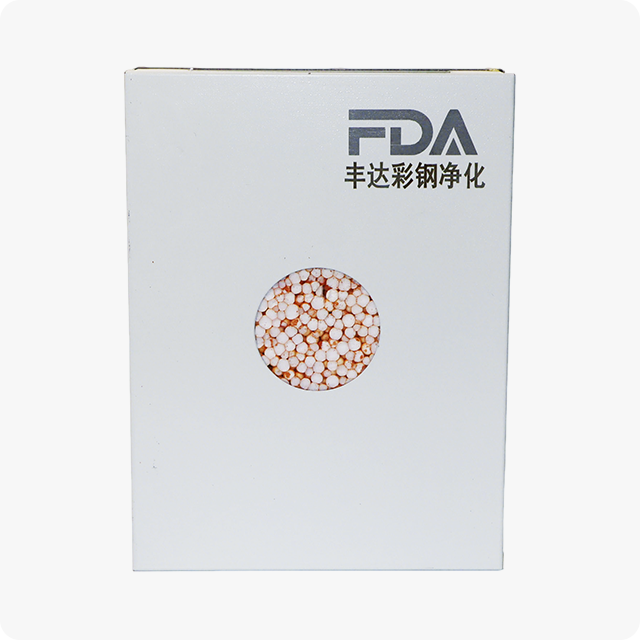

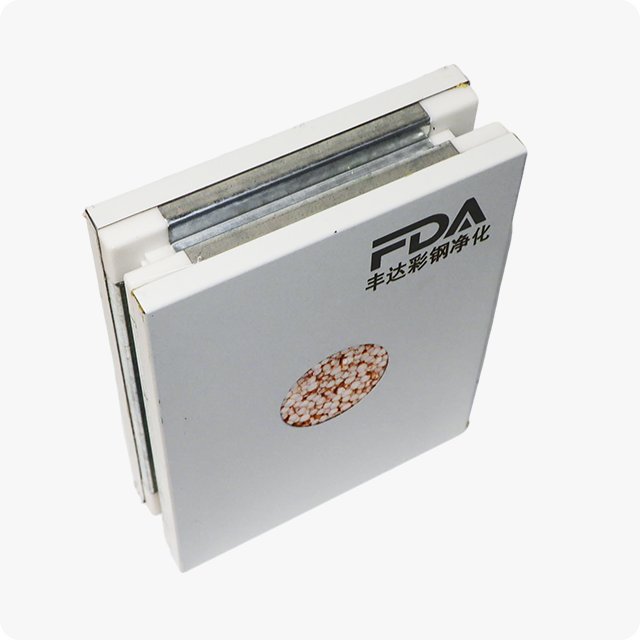

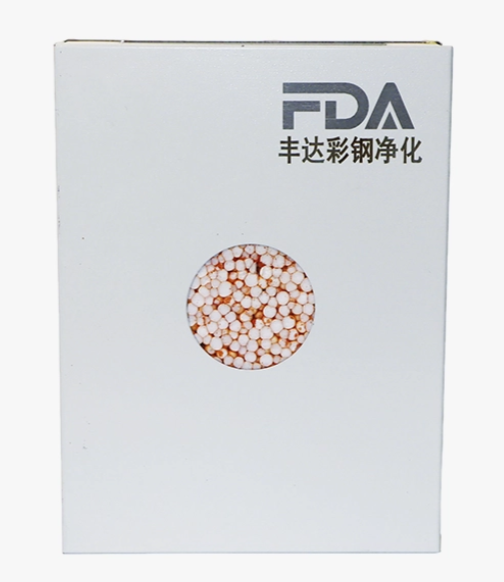

Seamless polyurethane panels for cold storage rooms represent engineered building materials designed for thermal insulation applications. These panels feature a core structure of polyurethane (PU) foam, with surface layers composed of galvanized steel, stainless steel, or color-coated steel sheets. The manufacturing process combines high-strength adhesive bonding with heat and pressure treatment through high-speed continuous automatic forming equipment. Panels undergo precision edge trimming, slotting, and cutting processes before final production.
Fengda operates four production bases across China, equipped with 8 fully automated production lines achieving a daily output capacity exceeding 20,000 square meters. Facilities are located in Jiangsu, Hubei, Guangdong, and Xinjiang regions, enabling efficient distribution to commercial procurement projects nationwide.
Parameter | Specification |
Length | Customized according to customer requirements (generally ≤ 6000mm) |
Width | 980mm, 1180mm; Non-standard dimensions customizable |
Thickness | 50mm, 75mm, 100mm |
Fire resistance performance | Grade B |
Connection method | Mid-mounted aluminum connection, male and female socket, three-mother one-formula connection |
Polyurethane core material delivers a thermal conductivity value of 1.8kcal/㎡/h/℃. This insulation level supports consistent temperature maintenance required for cold storage operations. The closed-cell structure of polyurethane foam contributes to the material's waterproof and moisture-resistant properties.
Panels incorporate male-female connection systems enabling seamless assembly. Pre-buried conduit options are available for integrated wiring installation during construction. The composite structure provides sound insulation properties measuring 20dB. Panels operate effectively across a range of temperature conditions suitable for industrial applications.
The polyurethane core material produces no toxic emissions or odors during installation or operation. Steel surface layers provide structural rigidity and corrosion resistance. The unified forming process creates consistent panel dimensions throughout production runs.
Polyurethane cold storage panels serve multiple commercial and industrial settings requiring controlled temperature environments. Primary applications include cold storage facilities for food preservation, biopharmaceutical storage areas, and temperature-controlled warehouses. The panels also function in cleanroom environments for electronic manufacturing facilities, new energy production spaces, and food processing plants. Additional installation locations include pharmaceutical clean areas, laboratory facilities, and specialized medical operation rooms requiring temperature regulation.
The Grade B fire resistance rating makes these panels suitable for general purification standards across various industrial applications.
Panel dimensions accommodate project-specific requirements, with length customization available up to 6000mm. Standard widths of 980mm and 1180mm support most installation configurations, with non-standard width options available upon request. Three thickness options address different insulation requirements based on cold storage temperature specifications.
Multiple connection methods support different installation scenarios. Mid-mounted aluminum connections, male-female socket systems, and three-mother one-formula connections provide flexibility for various wall and ceiling configurations. The panel design enables straightforward splicing, reducing on-site installation time for commercial construction projects.
Standard thickness options include 50mm, 75mm, and 100mm. Selection depends on the specific temperature requirements of the cold storage facility and local building codes.
Yes, panel length can be customized up to 6000mm according to project requirements. Non-standard width dimensions are also available for specialized installation needs.
Panels support three connection methods: mid-mounted aluminum connections, male and female socket connections, and three-mother one-formula connections. The appropriate system depends on the specific installation scenario and structural requirements.
The polyurethane cold storage panels achieve Grade B fire resistance performance, meeting general purification standards for industrial and commercial facilities.
